Technical Specifications
| Profile Material | Customized |
| Glass Configuration | Customized |
| Thickness | Customized |
| Hardware | Customized |
| Custom Service | Size / Color / Style Customized |
Core Advantages
Strong & Durable
Anti-corrosion, anti-rust, long service life over 30 years.
Super Sound Insulation
Effectively block outdoor noise, quiet indoor environment.
Energy Saving
Insulation and heat preservation, reduce air conditioning cost.
Waterproof & Windproof
Strict sealing technology, adapt to harsh weather.
Frequently Asked Questions

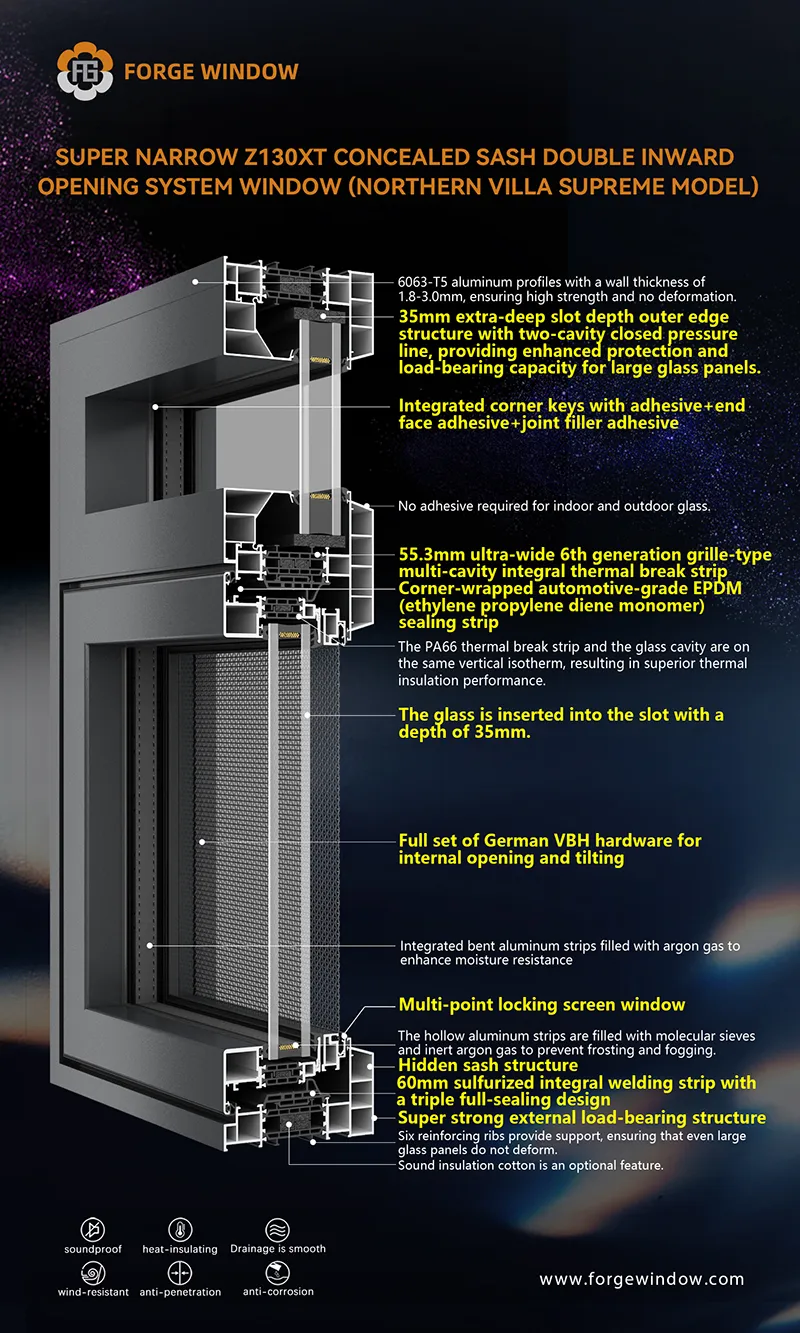

Q: What is the frame specification of Z130XT dual inward-opening window?
A: It adopts a 130mm ultra-thick thermal break system frame, made of 6063-T5 virgin aluminum alloy with 1.8mm overall thickness (reinforced to 2.0-3.0mm at key stress points) and a multi-cavity insulation structure.
Q: What opening functions does this window support?
A: It supports dual inward opening and tilt-turn functions. Inward opening allows easy indoor cleaning, while tilt-turn provides safe micro-ventilation, meeting daily use needs flexibly.
Q: What glass configuration is standard, and are there any upgrades available?
A: The standard configuration is 5mm+12A+5mm+12A+5mm triple tempered insulated glass (3C certified). Optional upgrades include Low-E coating, argon gas filling and warm edge spacer for better thermal insulation and soundproofing.
Q: Does it come with a screen mesh?
A: Yes, an optional 304 high-transparent anti-theft security mesh is available, adopting an integrated design that is anti-mosquito, anti-theft and does not block the viewing vision.
Q: How about the sealing and waterproof performance?
A: It is equipped with 3-4 layers of automotive-grade EPDM sealing strips and a concealed pressure equalization drainage system, ensuring excellent airtightness, water tightness and wind resistance, suitable for various climates.
Q: What is the thermal insulation and sound insulation effect?
A: The U-value is ≤1.0 W/(㎡·K), achieving excellent energy-saving and thermal insulation performance; the sound insulation effect reaches 38-48dB, effectively isolating outdoor noise.
Q: Can I customize the size and color?
A: Yes, custom sizes, surface colors (powder coating, fluorocarbon spraying) and wood grain transfer finishes are all supported to meet different project and design needs.
Q: Is the hardware durable and reliable?
A: It is matched with premium branded tilt-turn hardware (such as German VBH or equivalent), which operates smoothly, is anti-rust and anti-aging, and has a long service life.
Q: What scenarios is Z130XT suitable for?
A: It is ideal for high-rise residences, luxury villas, hotels, apartments, high-standard balcony enclosures and commercial projects, especially suitable for high-demand scenarios for thermal insulation, sound insulation and wind resistance.
Q: What is the corner joint craft of the window?
A: It adopts pin injection molding + two-component structural glue corner joint craft, ensuring firm connection, strong load-bearing capacity and good overall stability.
Product reference image
